Flywoo Bipolar, its latest Dual-Band series antenna, is meticulously engineered for the O3 / O4 PRO air unit. This series, featuring two types of antennas - Dual 5.8GHz/2.4GHz and Dual 5.8GHz, is designed to enhance transmission distance while boasting exceptional interference resistance capabilities.
The Flywoo Bipolar Dual-Band 5.8GHz/2.4GHz UFL Antenna incorporates cutting-edge dual-band, dual-polarized technology to ensure performance and compatibility that is better than the DJI O3 / O4 PRO air unit.

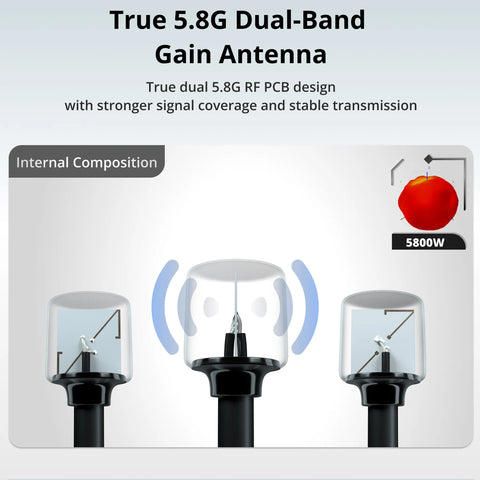

The Flywoo Bipolar Dual 5.8GHz UFL Antenna stands out as a true dual 5.8G antenna. It's celebrated for its lightweight design and durability, offering stronger signal coverage and stable transmission. The lightest 90mm version weighs in at just 2.9g!
Specifications:

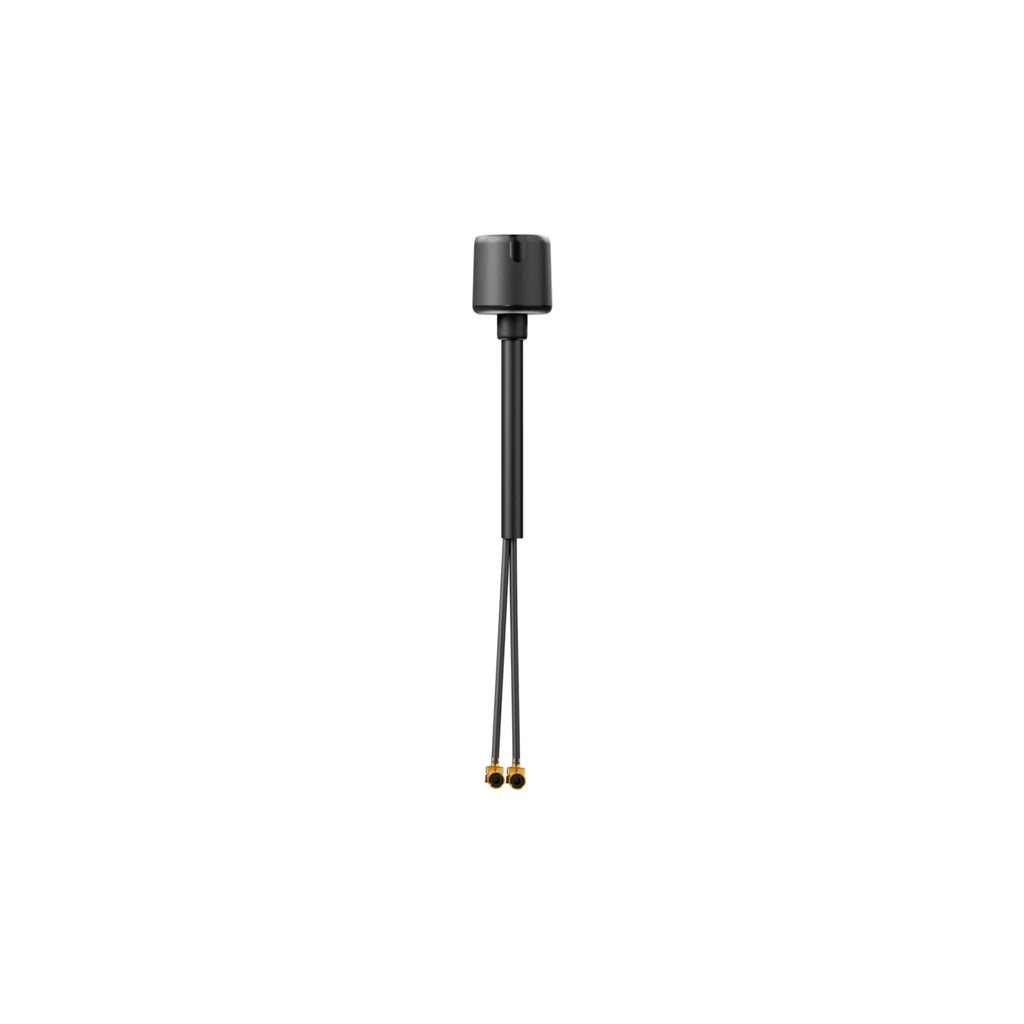

Flywoo Bipolar Dual 5.8GHz UFL Antenna
-
Frequency Range: Dual 5700-5900MHz
-
Gain: Dual 2.8dBi
-
VSWR≤1.6
-
Polarization: Linear
-
Impedance: 50Ω
-
Connector: 2x U.FL (2x IPEX1)
-
Cable: RF1.13
-
Weight: 2.9g
-
Size: Φ14x14mm
- Length: 90mm
