GOKU F405 HD 1S 5A ELRS AIO For DJI O4 / WalkSnail / HDZero

  • Sale
  • Regular price $54.99
Shipping calculated at checkout.


  • Product Description:

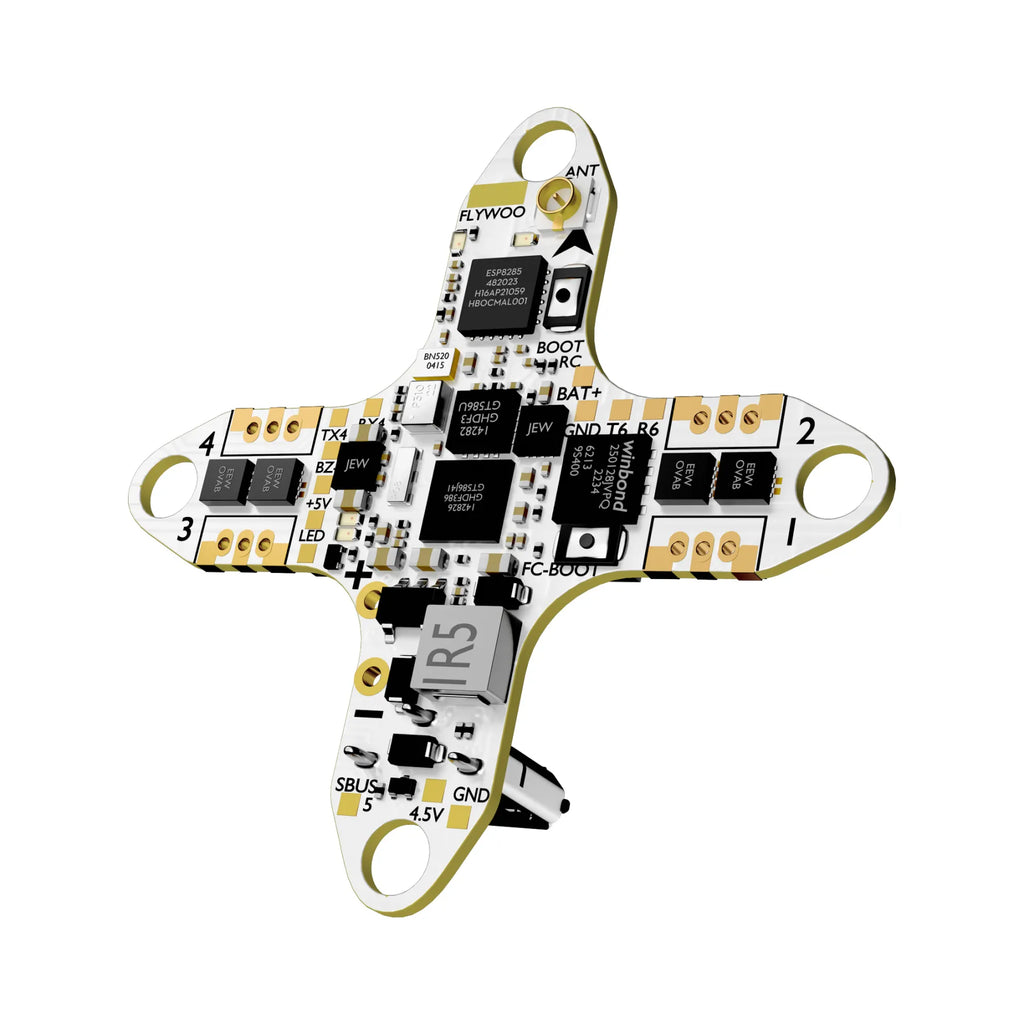

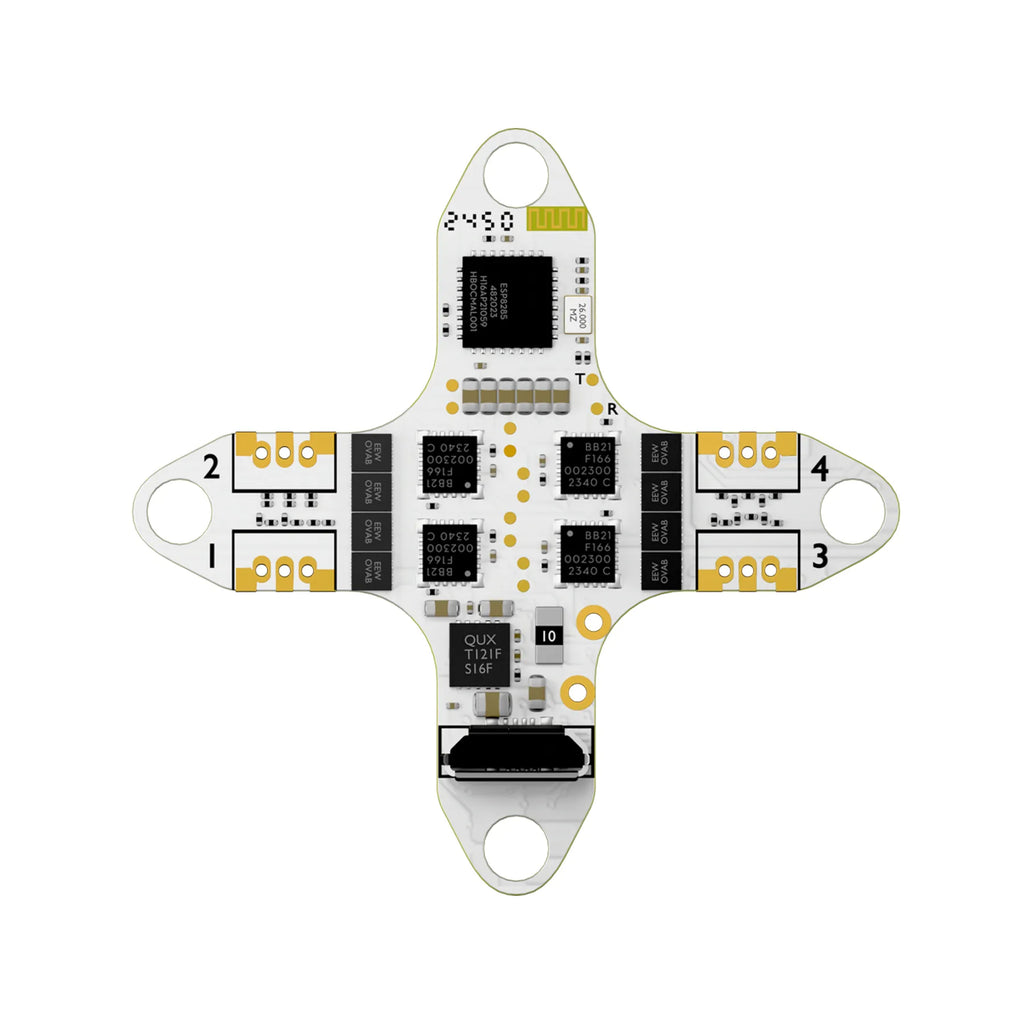

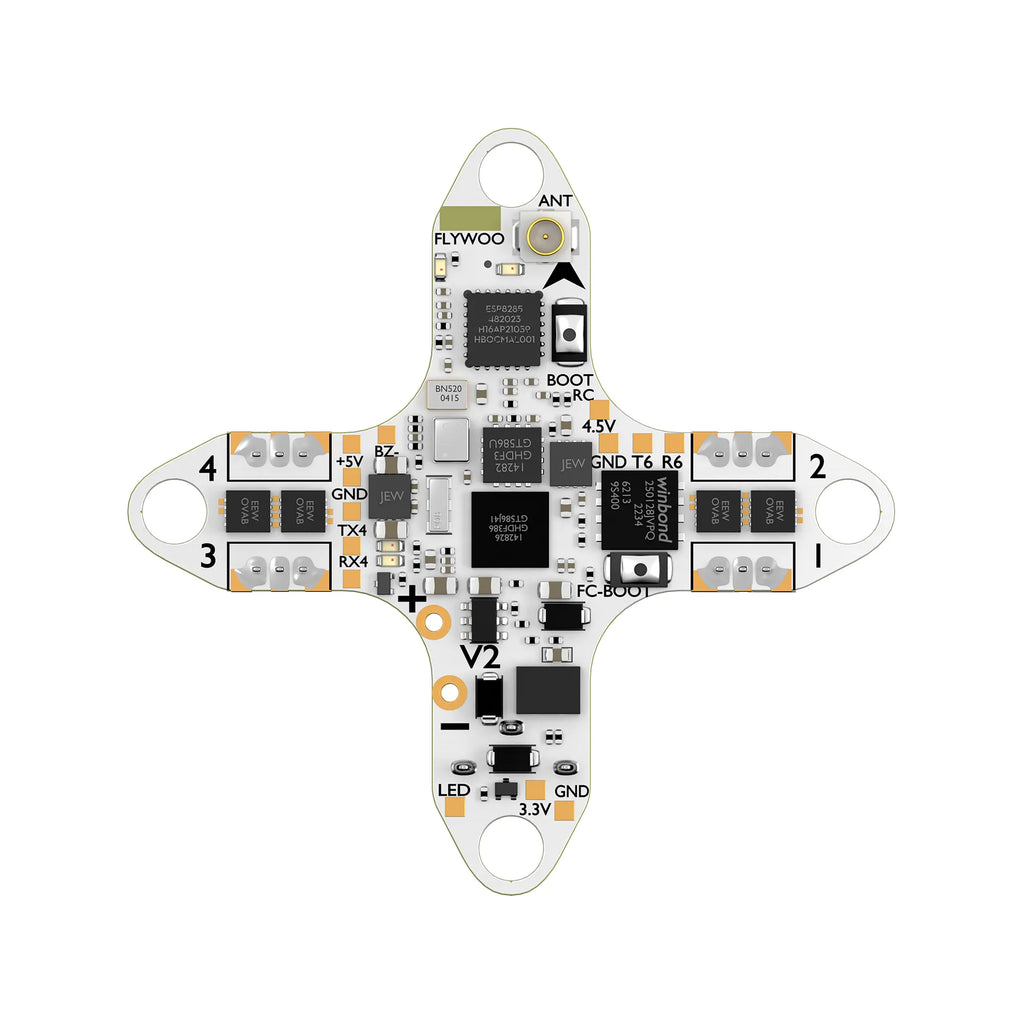

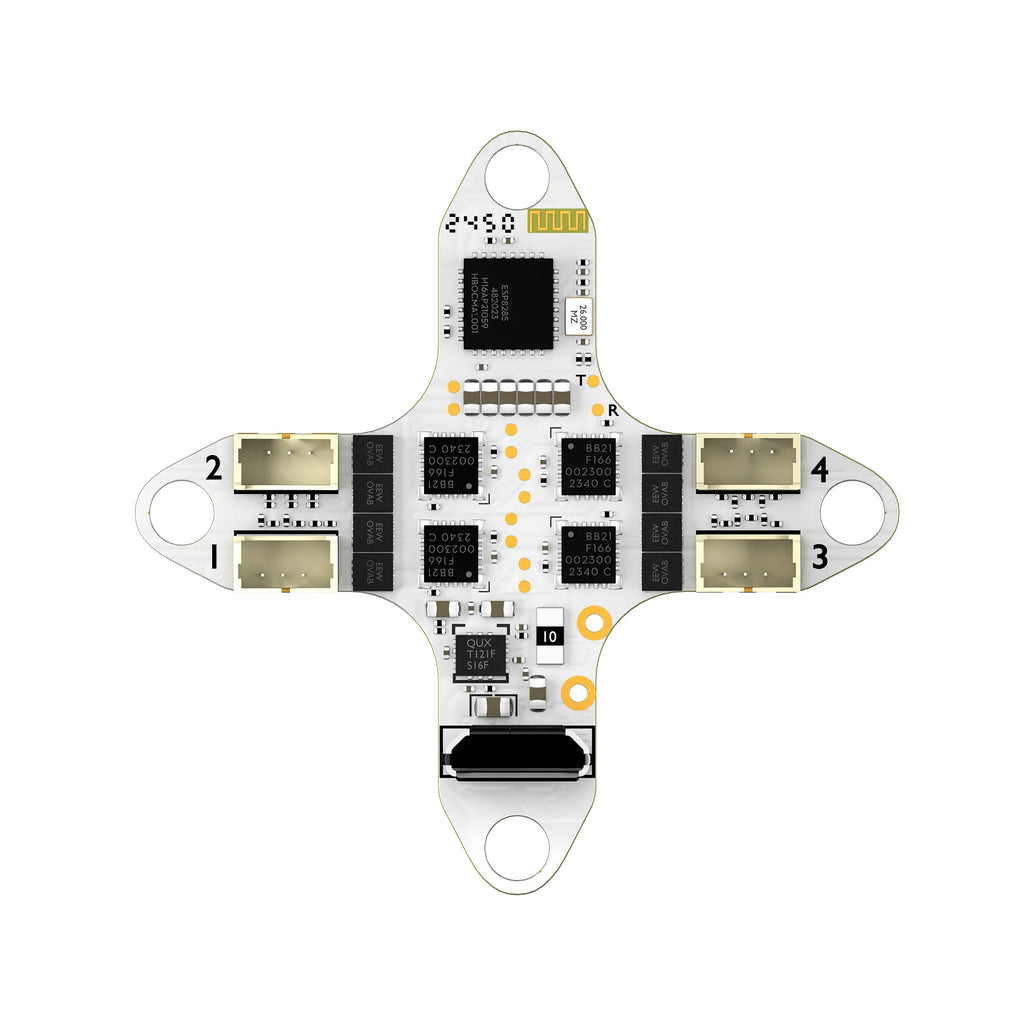

    The Flywoo GOKU F405 HD 1S 5A AIO w/TXCO ELRS is a groundbreaking flight controller designed specifically for ultra-compact 1S HD drones, combining cutting-edge performance with unmatched portability.

    Built around the STM32F405 BGA MCU, this all-in-one (AIO) board delivers superior computational power while maintaining an exceptionally lightweight design of 2.6g (excluding motor connectors ). Its cross-shaped PCB stacking ensures seamless compatibility with all 1S frame kits, making it ideal for pilots seeking precision, reliability, and adaptability in micro HD builds.

    Highlights:

    • When paired with the FLYWOO O4 1S 5V BEC module, it can achieve a minimum voltage of 2.6V.
    • Integrated Serial ELRS 2.4GHz receiver (with TCXO crystal oscillator for superior precision and stability)
    • STM32F405BGA aerospace-grade MCU (up to 68% faster processing vs. traditional F411 and 20% vs. G437)
    • Equipped with ICM-42688P gyro and 8MB Betaflight Blackbox flash memory
    • Ultra-compact, slim, cross-shaped PCB layout compatible with all popular 1S frames
    • Specifically optimized for 1S HD drone setups, including Walksnail, HDZero, and DJI O4 systems

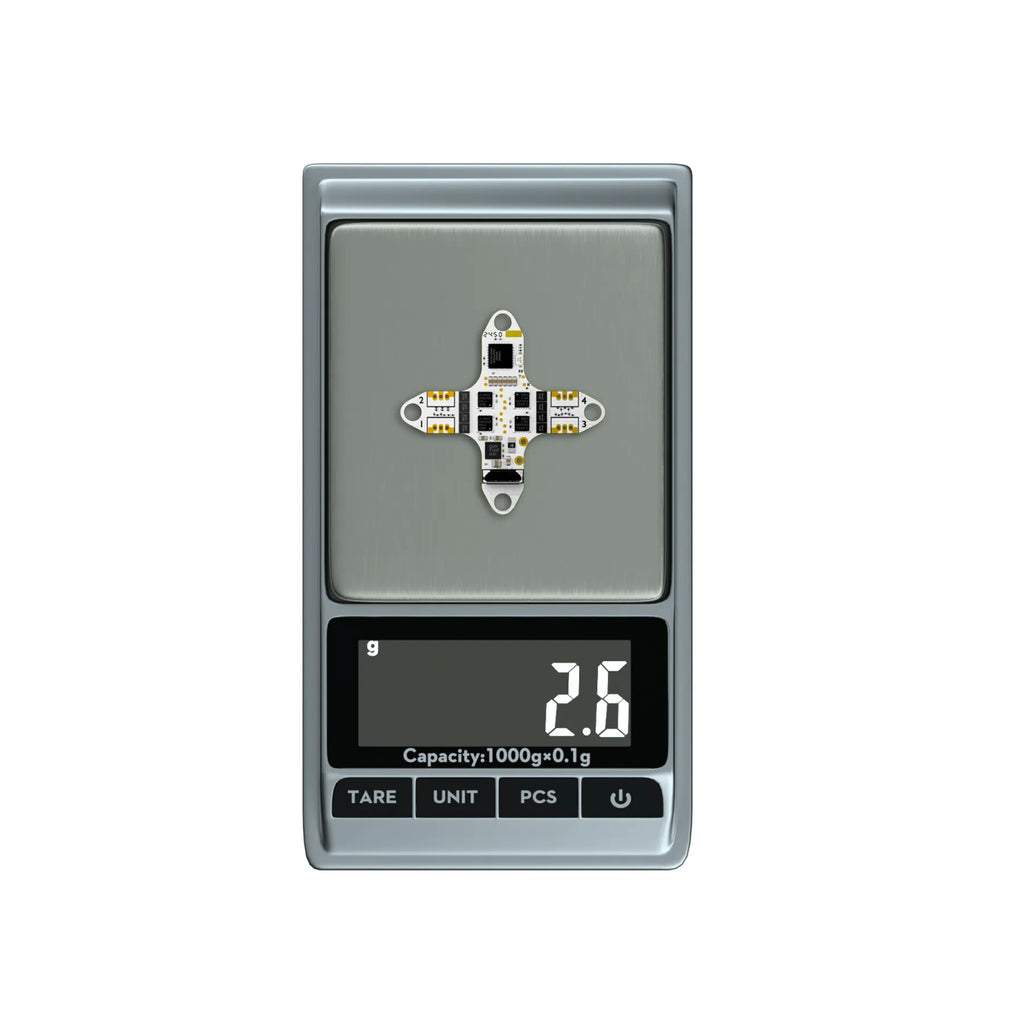

    • Weighs just 2.6g without motor connectors—the industry's lightest 1S AIO solution

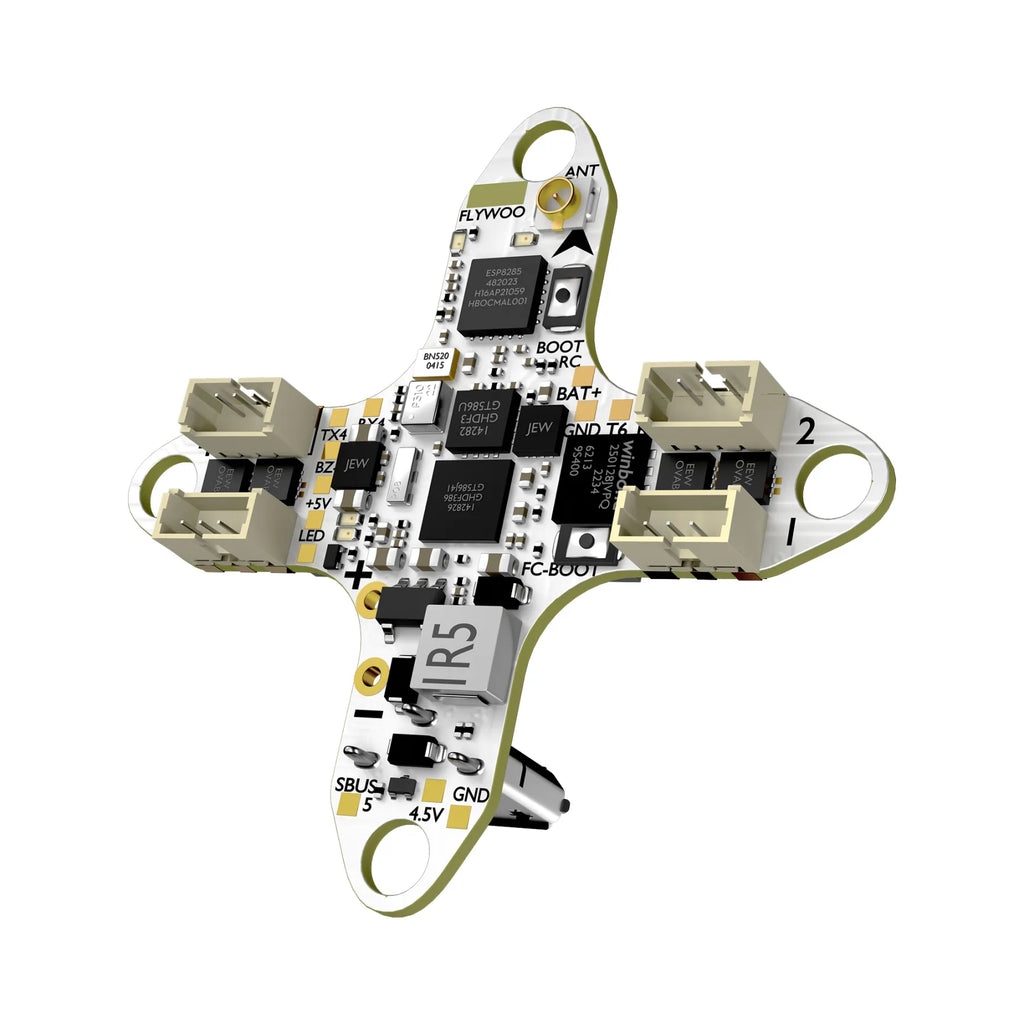

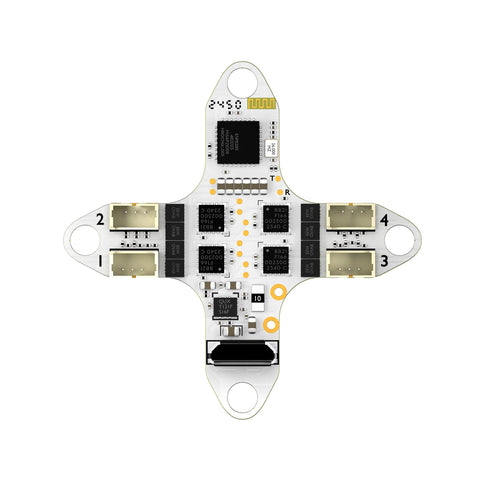

    • Pre-soldered motor connector

    Specifications:

    Product Name
    GOKU F405 HD 1S 1S 5A AIO w/TCXO ELRS
    MCU
    STM32F405BGA
    IMU
    ICM42688P
    Barometer
    SPL06
    Black Box
    8M
    OSD Support
    No
    UART
    UART 3(For ELRS),UART4,UART5(SBUS),UART
    Protocols
    CRSF, SBUS, iBus, Spektrum
    BEC
    5V 2.0A max
    RX
    Flywoo TCXO EL24E 2400 RX 3.0.0
    FC Firmware
    FLYWOOF405S_AIO

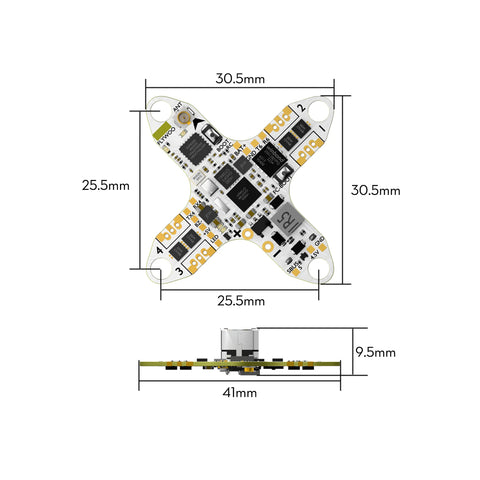

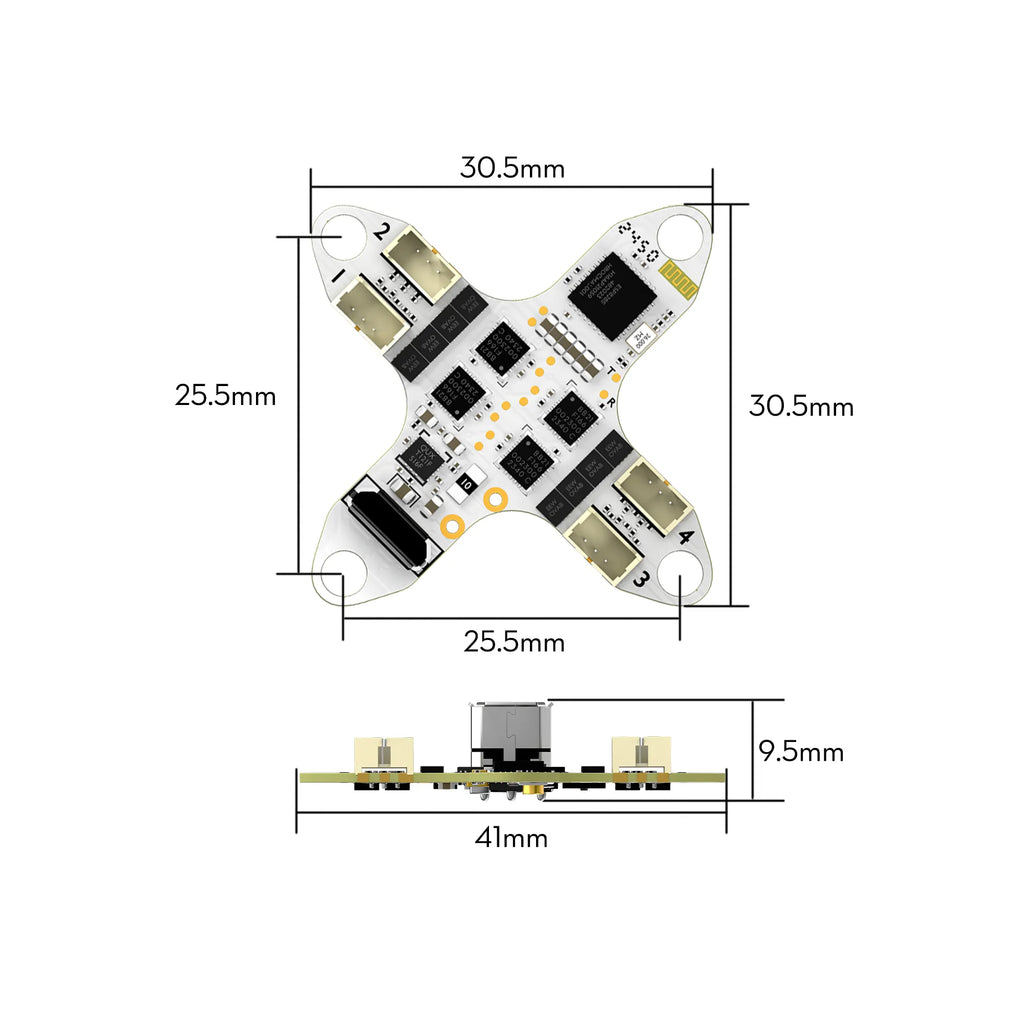

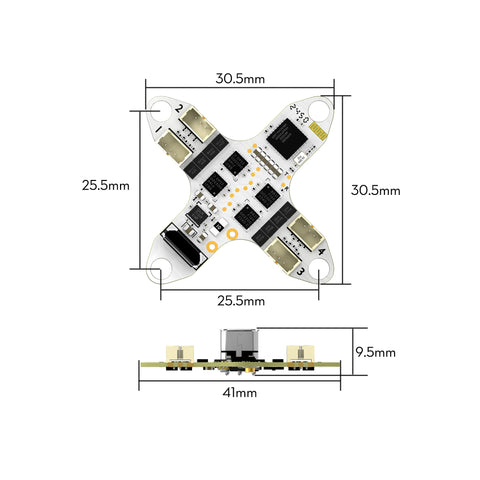

    Dimensions
    30.5 x 30.5mm
    Mounting Holes
    Standard 25.5/25.5mm square to center of holes

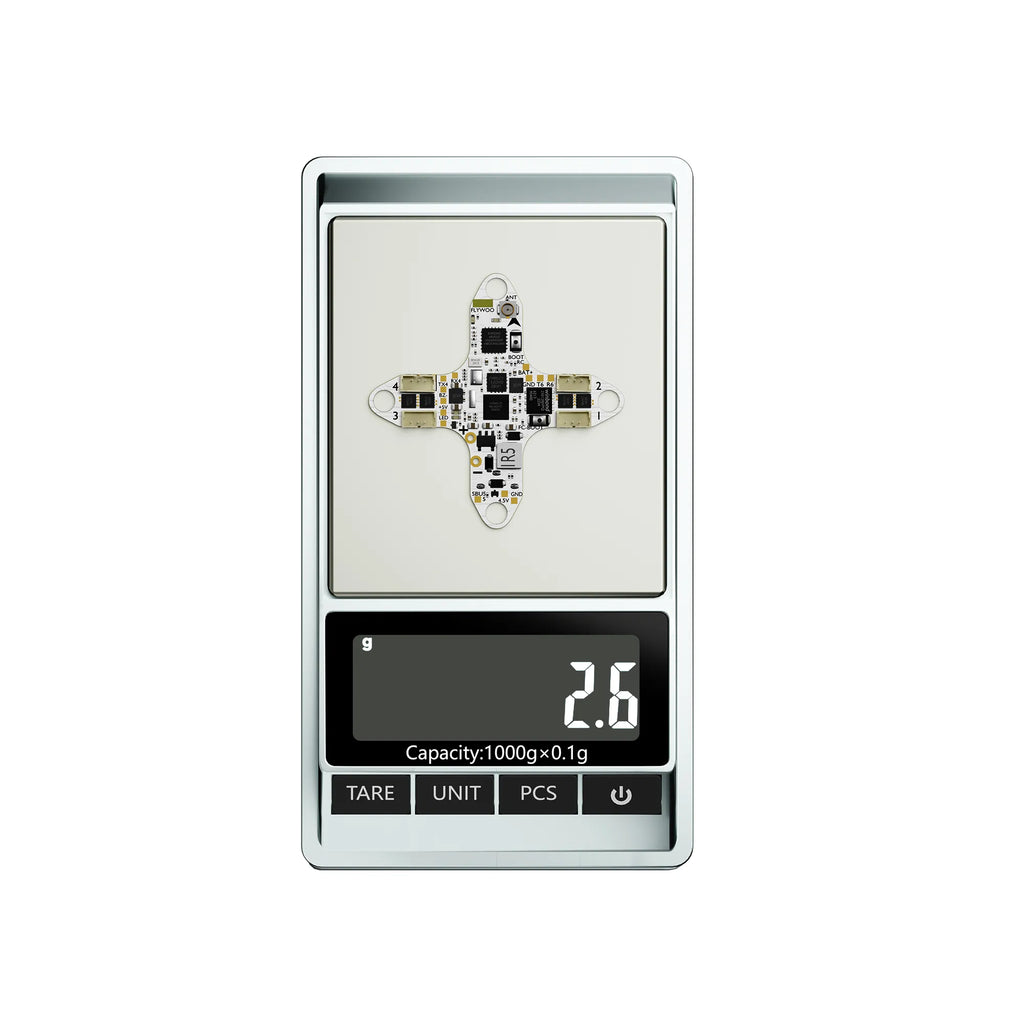

    Weight
    2.6g ( no motor connector )
    3.28g ( with motor connector )



    Product Name
    Onboard 4in1 ESC
    Power input
    1S Only
    Current
    5A continuous, 8A peak
    ESC firmware
    O_H_5_48KHz_V0.19.hex Bluejay firmware
    Digital signal protocol
    DShot300, DShot600
    Motor Connector
    JST1.25
    Battery connector
     A30



    Product Name
    FLYWOO O4 1S 5V BEC Module
    Input Voltage
    2.65V-5V (1S battery voltage)
    Output
    5V/3A
    Dimensions
    11mm x 8mm x 2.2mm
    Weight
    0.4g

    In the box :

    • 1x GOKU F405 HD 1S 5A ELRS AIO (pre-soldered motor connectors)

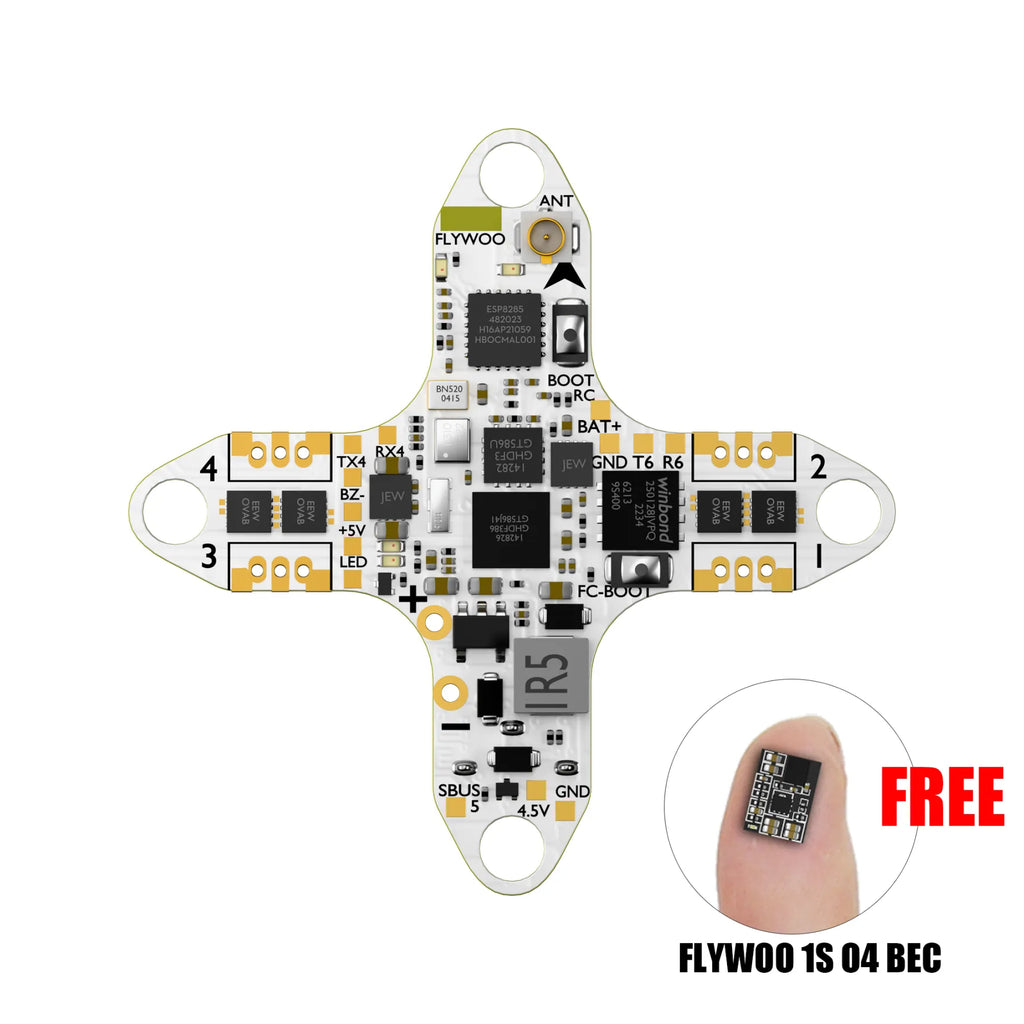

    • 1x FLYWOO O4 1S 5V BEC Module
    • 1x Flywoo ELRS 2.4g Minimortal PCB T Antenna UFL--40mm
    • 5x M2*6.6 Shock-absorbing ball
    • 1x shrink film
    • 4x Silica wire (Red/Black)
    • 1x A30 Power cable

     Wiring diagram

    Wiring Diagram Flywoo Goku F405 HD 1s 5A ELRS AIL
